GMTLaminar offers a patented, high quality air diffuser product for clean room, laboratory, and surgical suite applications. The upper ceiling would include HEPA or ULPA filtration prior to the lower GMTLaminar system. This design allows for a low velocity, laminar flow work surface below the GMTLaminar system air distributor.

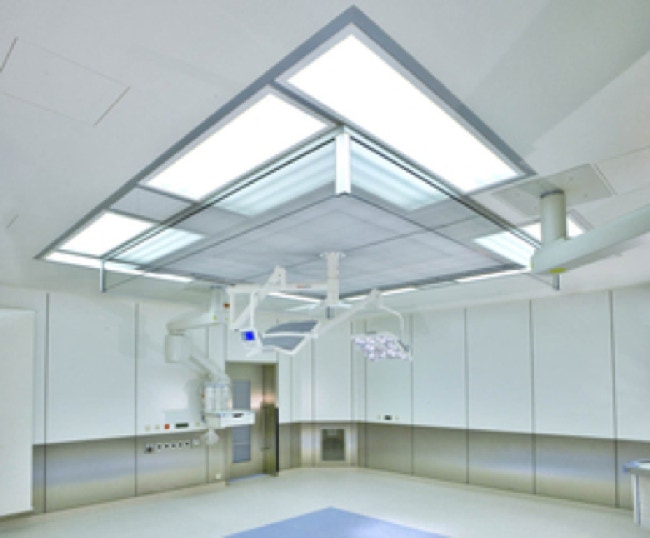

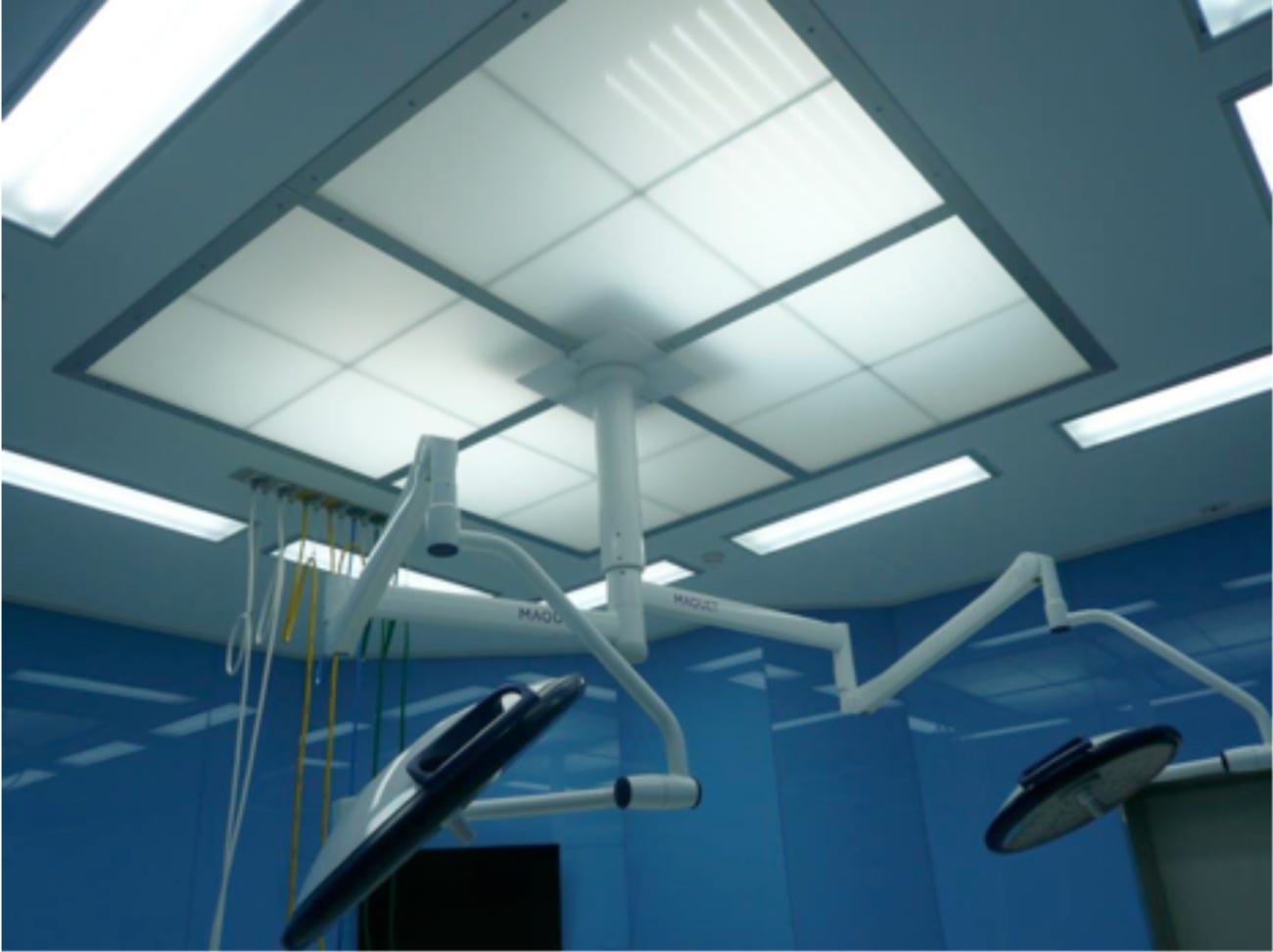

GMTLaminar Size 3.2m x 3.2m (Protection Area According to Standard DIN 1946-4:2008-12 with dimmable light LED, delivering terminal air velocity of 0.27m/s Laminar air over Operating Theatre area

GMTLaminar Size 3.2m x 3.2m (Protection Area According to Standard DIN 1946-4:2008-12 with dimmable light LED, delivering terminal air velocity of 0.27m/s Laminar air over Operating Theatre area

Feature

the GMTLaminar air diffuser provide:

• comfortable climate in the room, no draft and even air distribution over the protected area

• very low noise level <48dB(a)

• design with smooth surfaces resists to disinfection agents use in hospital

• minimised concentration of germs (< 10 CFU/m3) in the sterile area

• lower energy consumption due to low pressure losses compare to other turbulent air diffuser
